How does modular design reduce installation costs for 3km long ore conveyors?

        In the Pilbara mining area of Australia, a 3.2-kilometer-long iron ore conveyor line once gave the construction party a headache - the traditional fixed conveyor system took six months to set up, during which the rework rate due to the undulating terrain was as high as 30%. The conveying system with the modular design of Somtrue Automation Technology was deployed in just 98 days, and the cost was reduced by 22% compared with expectations. This "double victory of time and money" is redefining the standards of global mining transportation engineering.

The modular conveying matrix developed by Somtrue for the mining scenario mainly includes three main models

        Chain plate conveyor: With a thickened manganese steel chain plate and a double drive shaft design, it successfully carried 15 tons of ore blocks without deformation in a copper mine in Peru. Its modular brackets can be replaced quickly. A gold mine customer once completed the slope adjustment of a 200-meter conveying section in 4 hours.

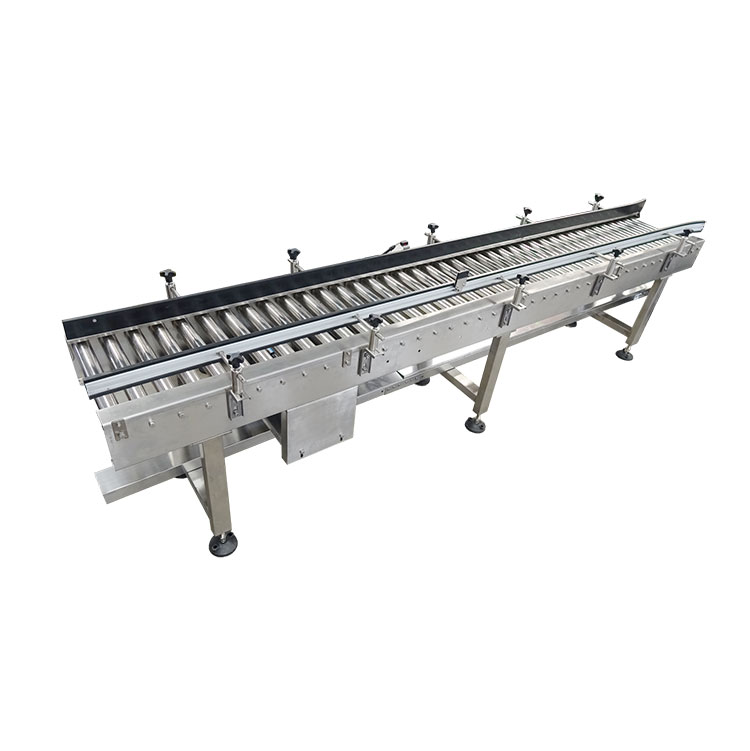

        Roller conveyor: Equipped with self-aligning roller assembly and tension buffer device, the application case in the Brazilian iron mine shows that this system can automatically adapt to terrain changes from -15° to +25°, and the roller life is 2.3 times longer than that of the traditional model.

        Chain conveyor: With its high-strength alloy chain and detachable scraper design, it has been able to operate continuously for 180 days without a hitch in wet clay conveying at the platinum mine in South Africa, improving maintenance efficiency by 65%.

The modular magic makes building conveyor lines as easy as assembling building blocks

        The traditional conveying system is like a custom-made suit, while our modular design is like a ready-made clothing store. The chief engineer of Somtrue explained the technological breakthrough with life-like metaphors.

        Standard interface revolution: All conveying units adopt a unified flange connection structure, and different models can be freely spliced. In the coal mine project in Mongolia, the client integrated the conveying sections that originally required three different interfaces into one system.

        Pre-assembled component library: Key modules such as the drive station, steering section, and tensioning device are pre-assembled in the factory, and on-site installation only requires tightening 8 sets of bolts. The measured data from the Canadian potash plant shows that modular installation saves 47% of the working hours compared with the traditional method.

        Terrain adaptive algorithm: The accompanying 3D modeling software can automatically generate the optimal stitching scheme based on the topographic map. In the case of the copper mine in Chile, the system perfectly avoided three geological fault zones by adjusting the combination mode of 12 standard modules.

From "Engineering Nightmare" to "Precise Delivery"

        In the past, building conveyor lines was like playing Tetris; there were always some terrains that didn't match up. The project manager of BHP Billiton Group recalled. After adopting the Somtrue solution, its Western Australia iron ore project was not only completed 38 days ahead of schedule, but also set a record of "zero rework". What surprised him even more was the flexibility brought by the modular design - when the mining area expands production, only four standard sections need to be added to increase the transportation capacity by 30%, and the cost is only one fifth of that of building a new system.

Technology In-depth Exploration

        At the recently held Global Mining Equipment Exhibition, Somtrue disclosed for the first time the "nerve center" of its modular system: each conveying unit is equipped with an RFID chip and pressure sensor, which can upload real-time operation data to the cloud. When the system detects abnormal load on a certain section of the drum, it will automatically adjust the conveying speed of adjacent units for diversion. This is like installing a "knee-jerk reflex" on the conveyor line, keeping the influence range of the fault within 3 meters. The person in charge of R&D explained.

A Cost Revolution throughout the entire Life cycle

        Facing ESG pressure, Somtrue's modular design demonstrates environmental advantages. In the recycling process, the standard interface enables 98% of the components to be reused. During the operation and maintenance stage, the pre-installed module reduces the single maintenance time from 8 hours to 1.5 hours. Calculations from a certain African gold mine show that after adopting this system, the annual carbon emissions per kilometer of the conveyor line have decreased by 127 tons, equivalent to the carbon sequestration capacity of planting 2,300 fir trees.

        A good conveying system should be like Lego bricks - both professional and flexible. General Manager Somtrue outlined the vision at the annual technology summit: "We are developing self-assembly modules. In the future, customers only need to input terrain parameters, and the system will automatically complete the entire process from design to installation." Make a 3-kilometer conveyor line as simple as setting up a tent.
